Voltage: 12V/24V
Power: 17W, 18 (1±10%) W

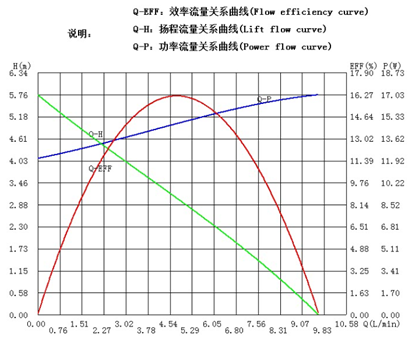

Flow rate: 9.5±1 L/min
Lift: 5±0.5 m
Ambient temperature: -25~55℃
Medium temperature: -15~100℃
Noise:≦40dB@1m
IP rating: IP68
Lifespan:>20000H
Features:
Small size, high lift, brushless motor structure, long life, low power consumption and noise, built-in protection, reliable performance
Integrated impeller design, lower cost
High temperature resistant material design, can transport 100℃ medium
Product application:
solar water heater booster pump, wall-mounted solar water heater and other booster circulation pumps
